Optional length：
Foot optional：
Cap optional：
Fork tube size：
| Size | A | B | C | D | E | F | G | H | L | M | N |
| 1 | 51mm | 48mm | 33/37mm | 15mm | 15mm | 6.2/8.2mm | 102mm | 800mm-860mm |

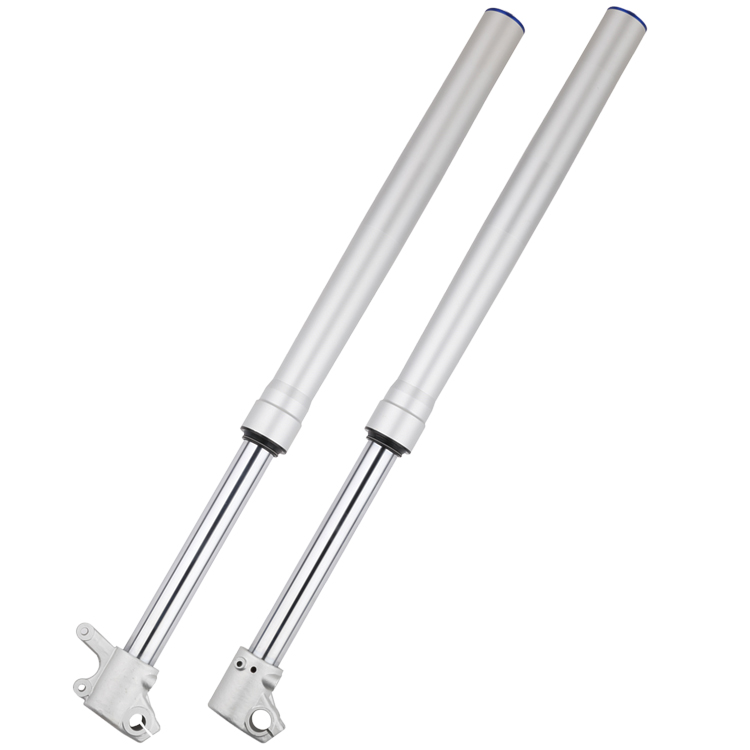

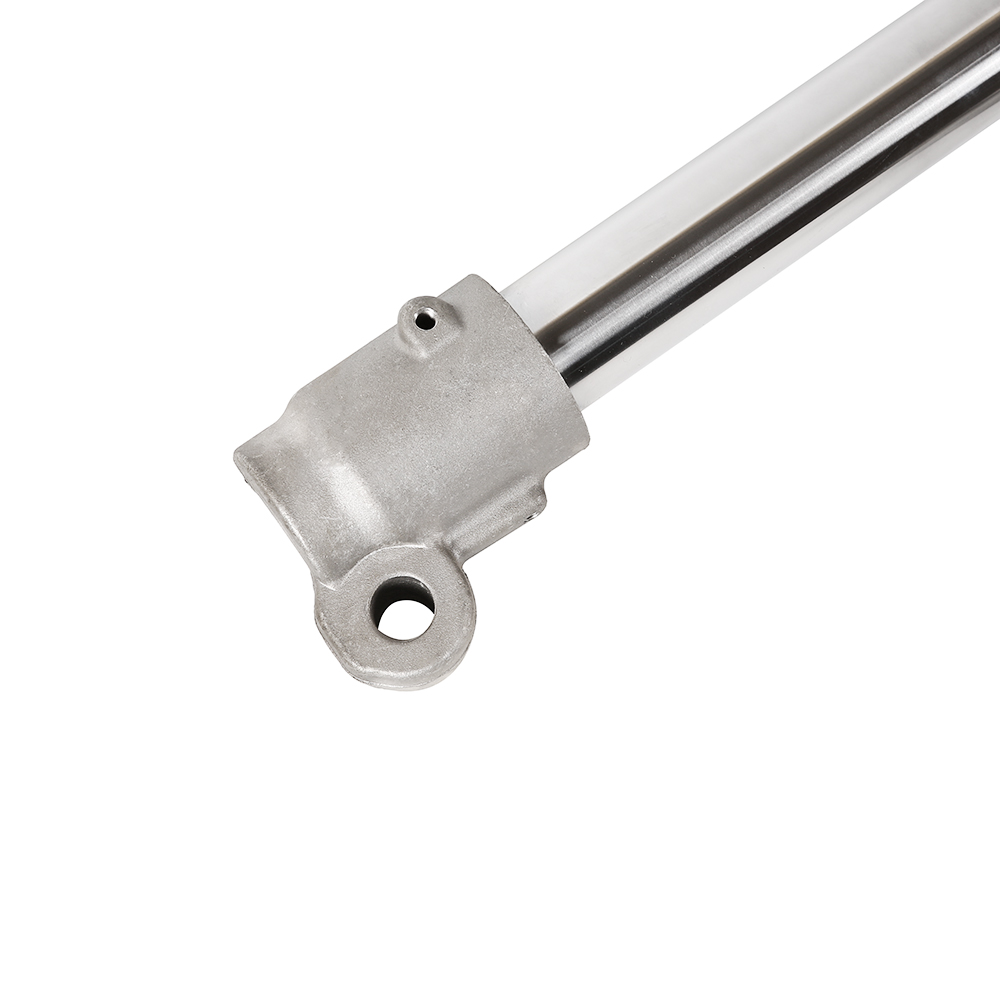

A01 series, D7 foot (casting) is not adjustable, aluminum alloy outer cylinder
Installation length: 800mm-860mm
Dimensions of outer cylinder installation position: 48mm-48mm, 48mm-51mm, 51-54mm
Fork tube size: 33mm, 37mm
Stroke: 100mm-200mm
| Size | A | B | C | D | E | F | G | H | L | M | N |
| 1 | 51mm | 48mm | 37mm | 20mm | 15mm | 6.2/8.2mm | 51mm | 600mm-830mm |

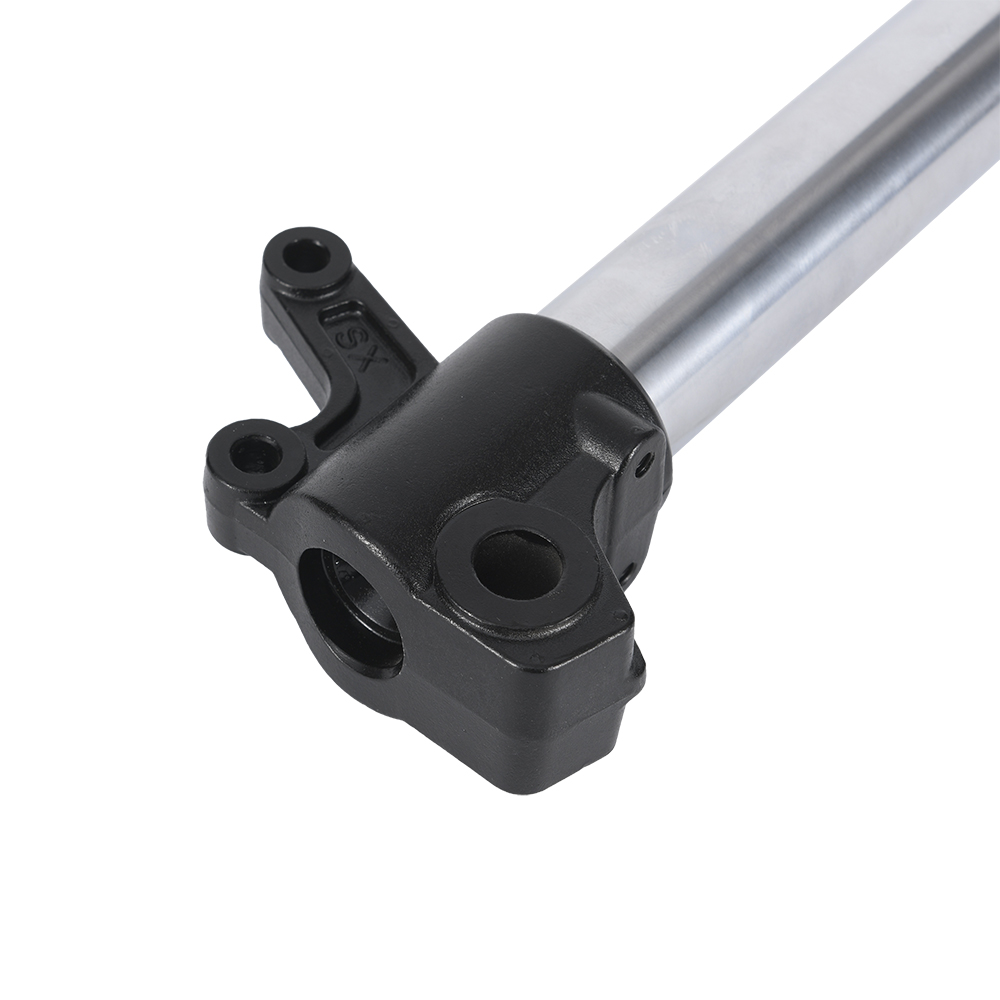

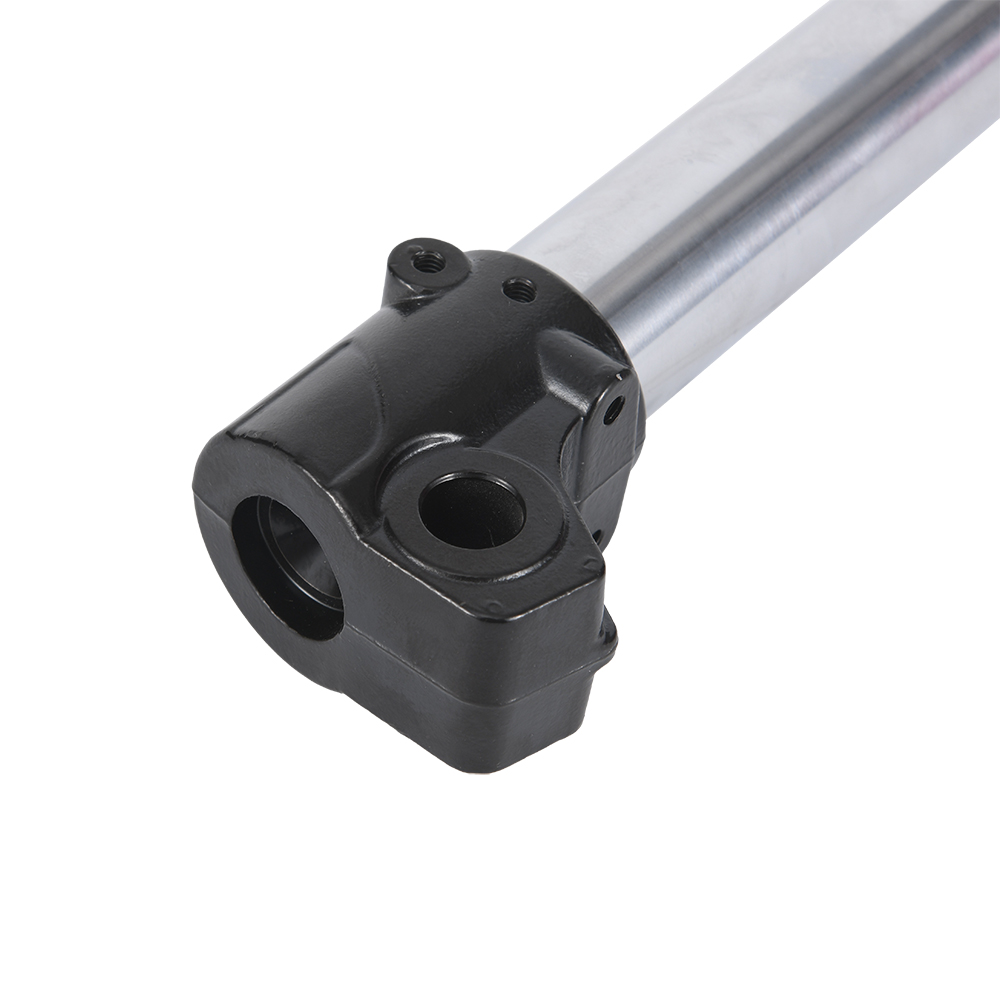

A01 series, 37# feet (forged) non-adjustable, aluminum alloy outer cylinder
Installation length: 600mm-830mm
Dimensions of outer cylinder installation position: 45mm-48mm, 48mm-48mm, 48mm-51mm
Fork Tube Size: 33mm, 37mm
Stroke: 80mm-200mm
| Size | A | B | C | D | E | F | G | H | L | M | N |
| 1 | 51mm | 48mm | 33/37mm | 12/15mm | 12/15mm | 6.2/8.2mm | 51mm | 630mm-860mm |

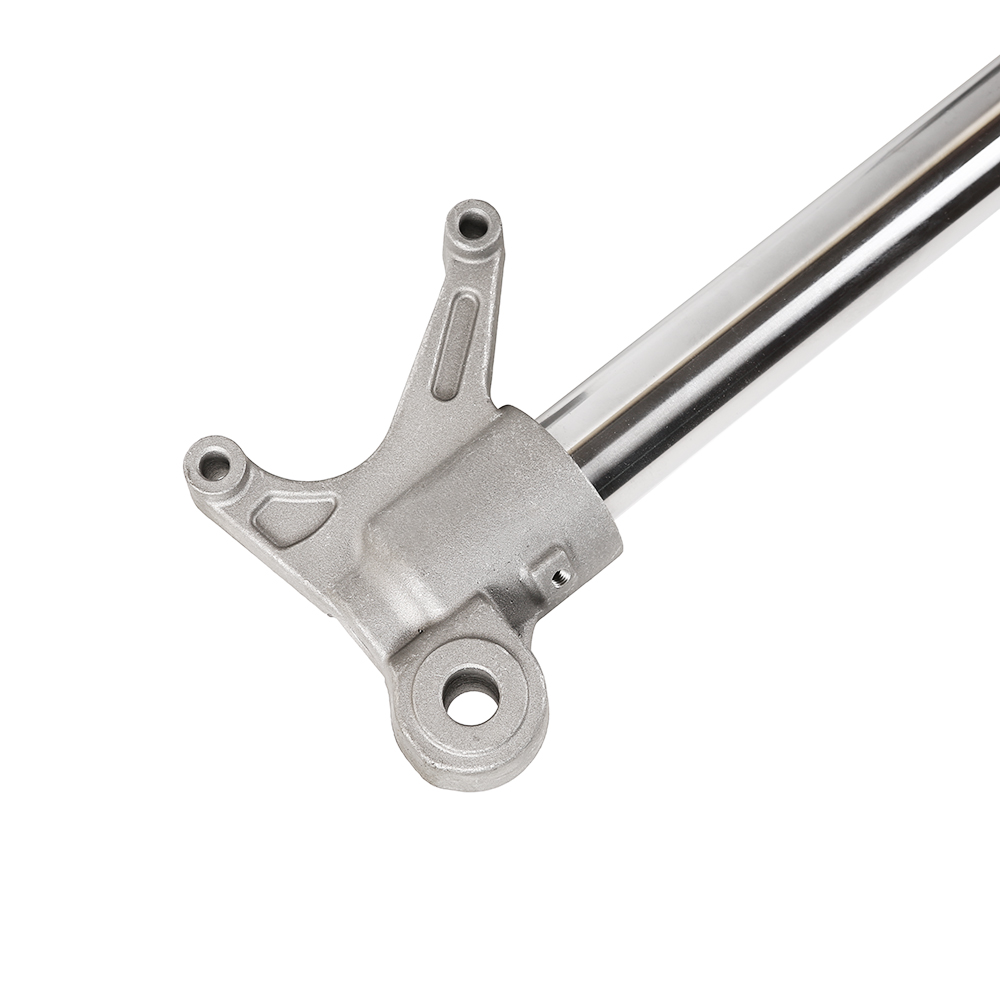

A01 series, horse feet (die-casting) are not adjustable, aluminum alloy outer cylinder
Installation length: 550mm-860mm
Dimensions of outer cylinder installation position: 45mm-48mm, 48mm-48mm, 48mm-51mm, 51mm-54mm
Fork Tube Size: 33mm, 37mm
Stroke: 80mm-200mm
