Optional length：

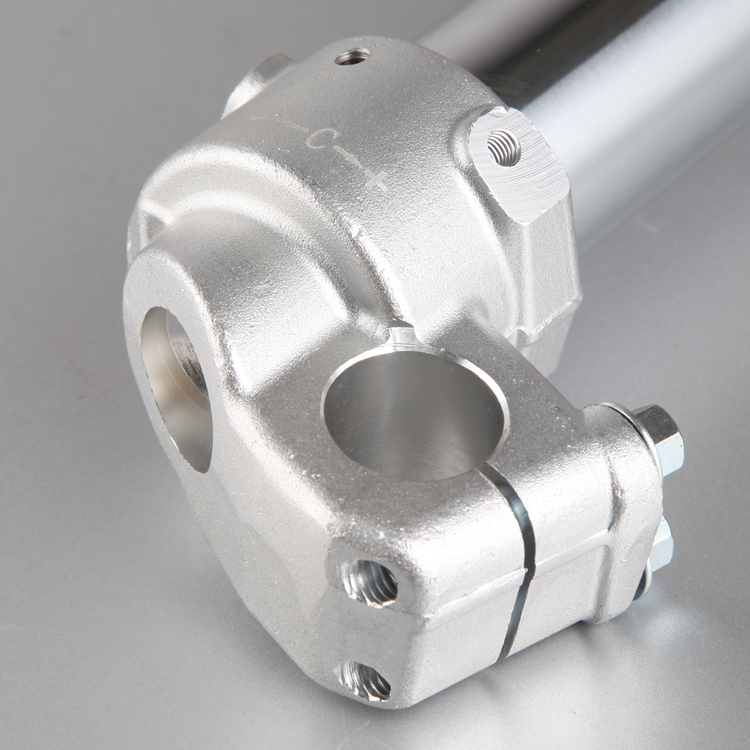

Foot optional：

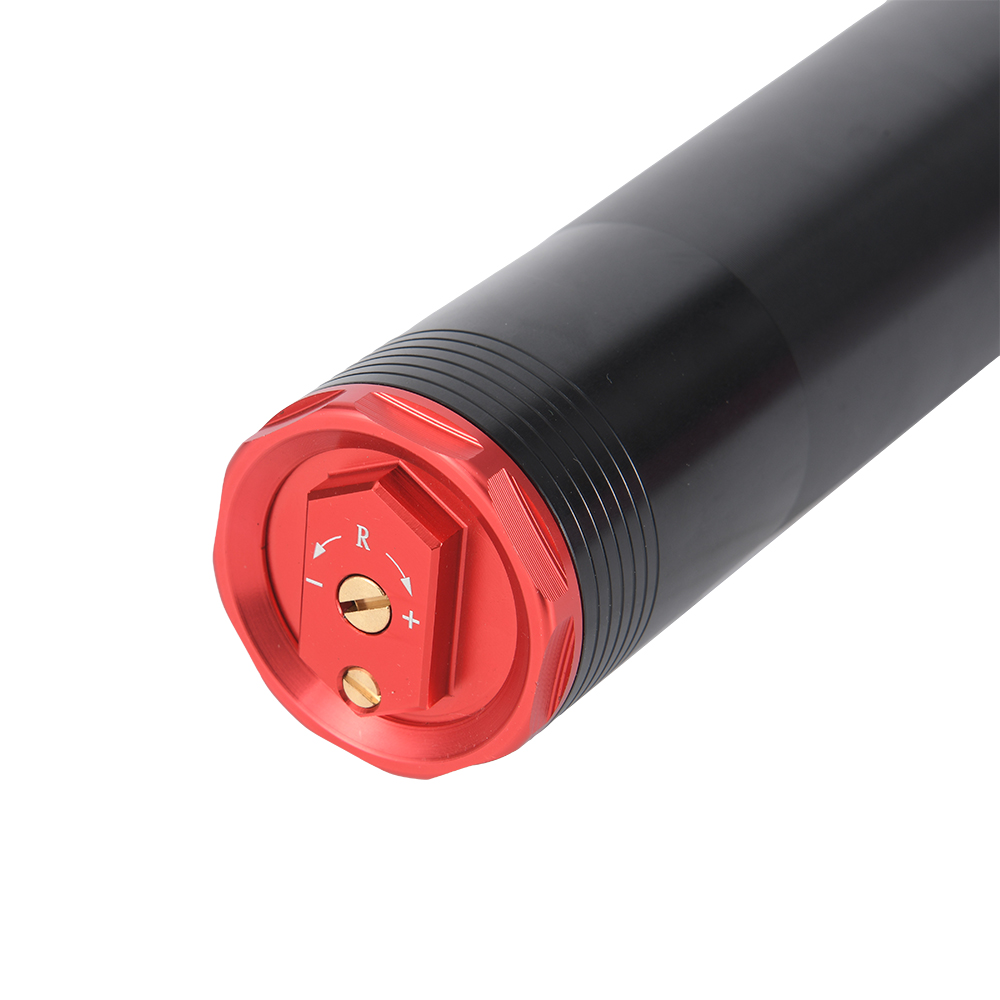

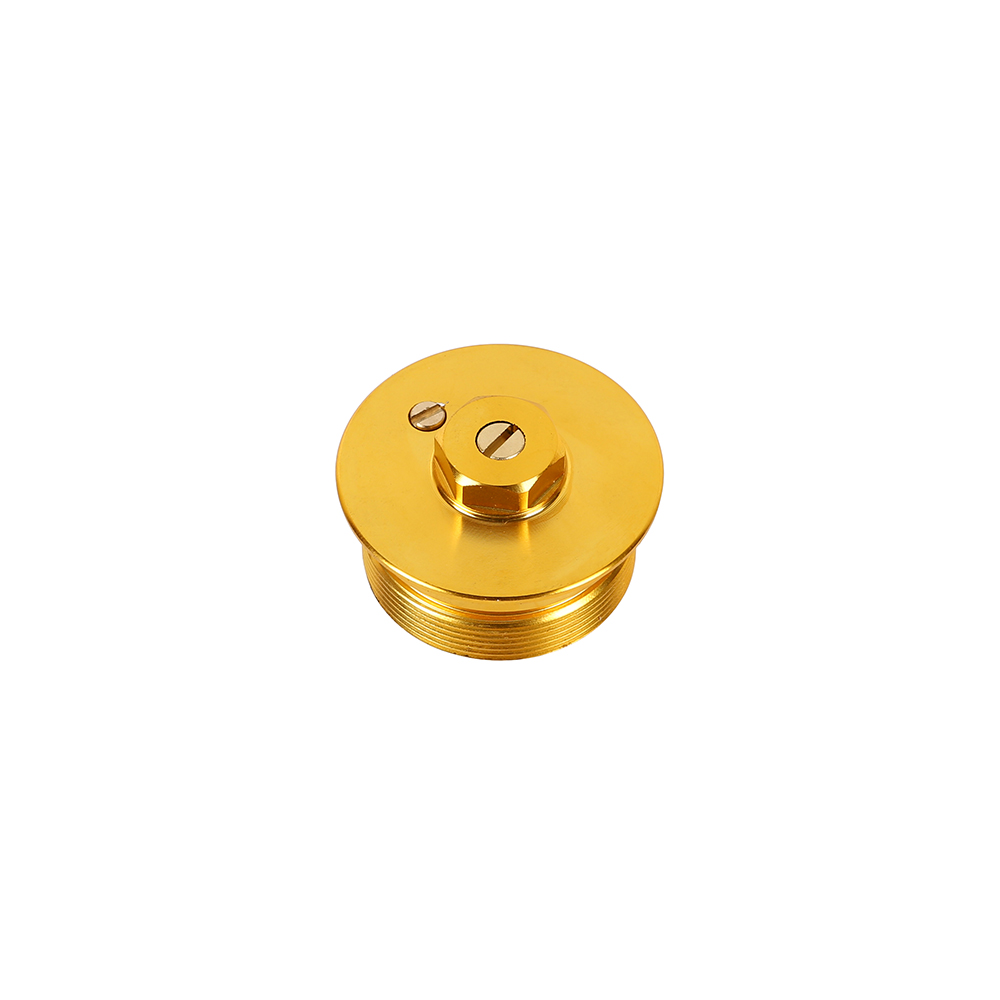

Cap optional：
Fork tube size：

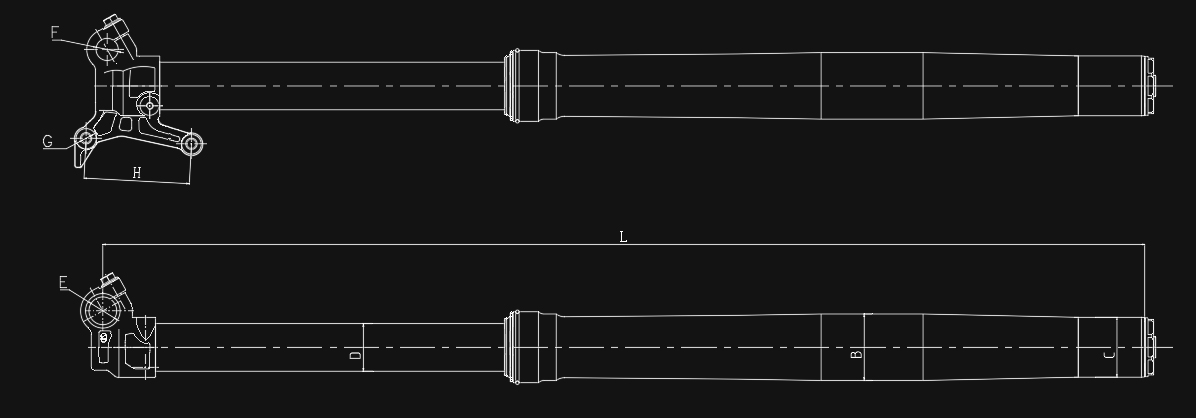

| Size | A | B | C | D | E | F | G | H | L | M | N |
| 1 | 60mm | 54mm | 43mm | 25mm | 20mm | 8.2mm | 78.5mm | 800mm-930mm |

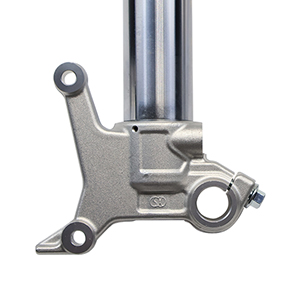

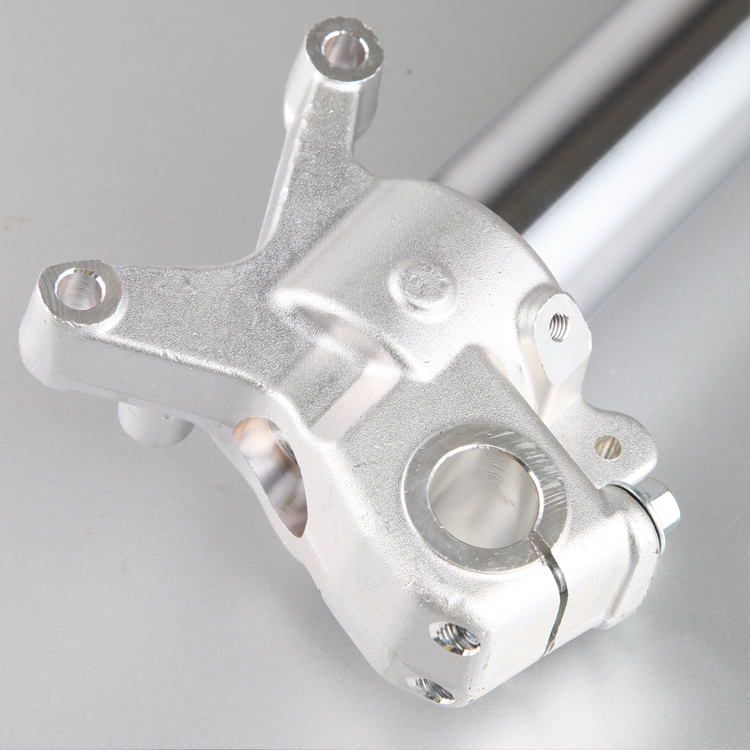

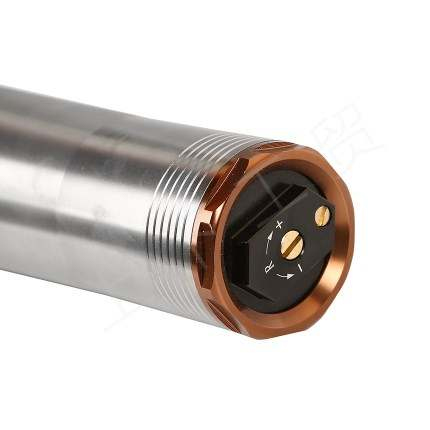

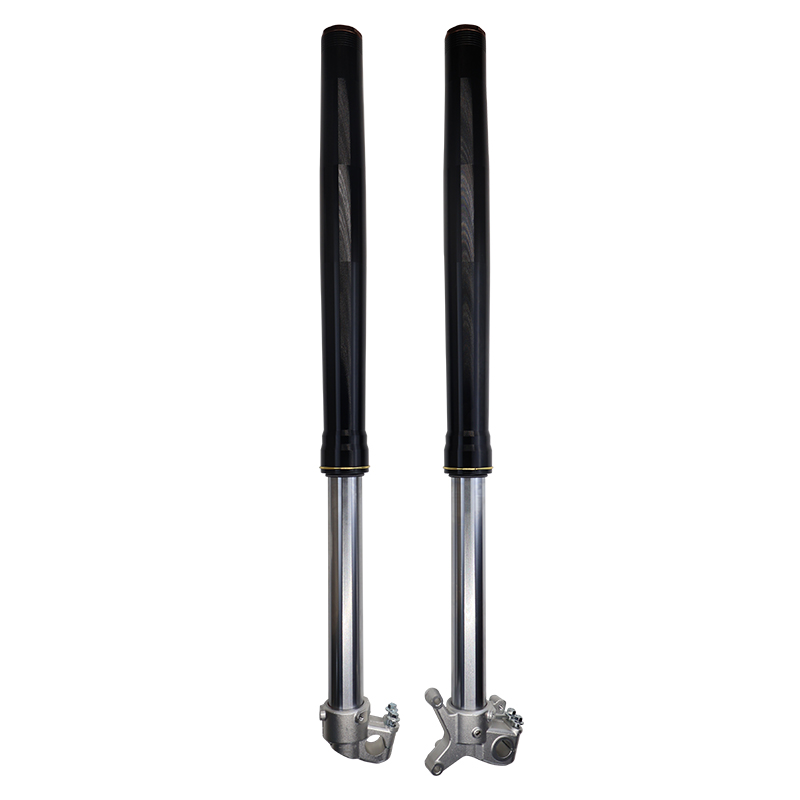

A04 series, Honda feet (forged), double adjustable, aluminum alloy outer tube
Installation length: 800mm-930mm
Outer tube installation position size: 53mm-58.5mm, 54mm-60mm
Fork Tube Size: 43mm
Stroke: 180mm-240mm
| Size | A | B | C | D | E | F | G | H | L | M | N |
| 1 | 60mm | 54mm | 43mm | 25mm | 20mm | 8.2mm | 95mm | 940mm |

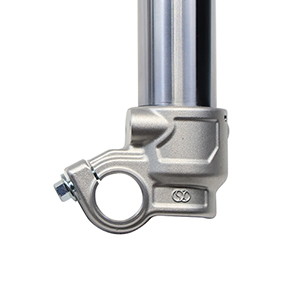

A04 series, 43# feet, double adjustable, aluminum alloy outer tube
Installation length: 800mm-930mm
Outer tube installation position size: 53mm-58.5mm, 54mm-60mm
Fork Tube Size: 43mm
Stroke: 180mm-240mm
